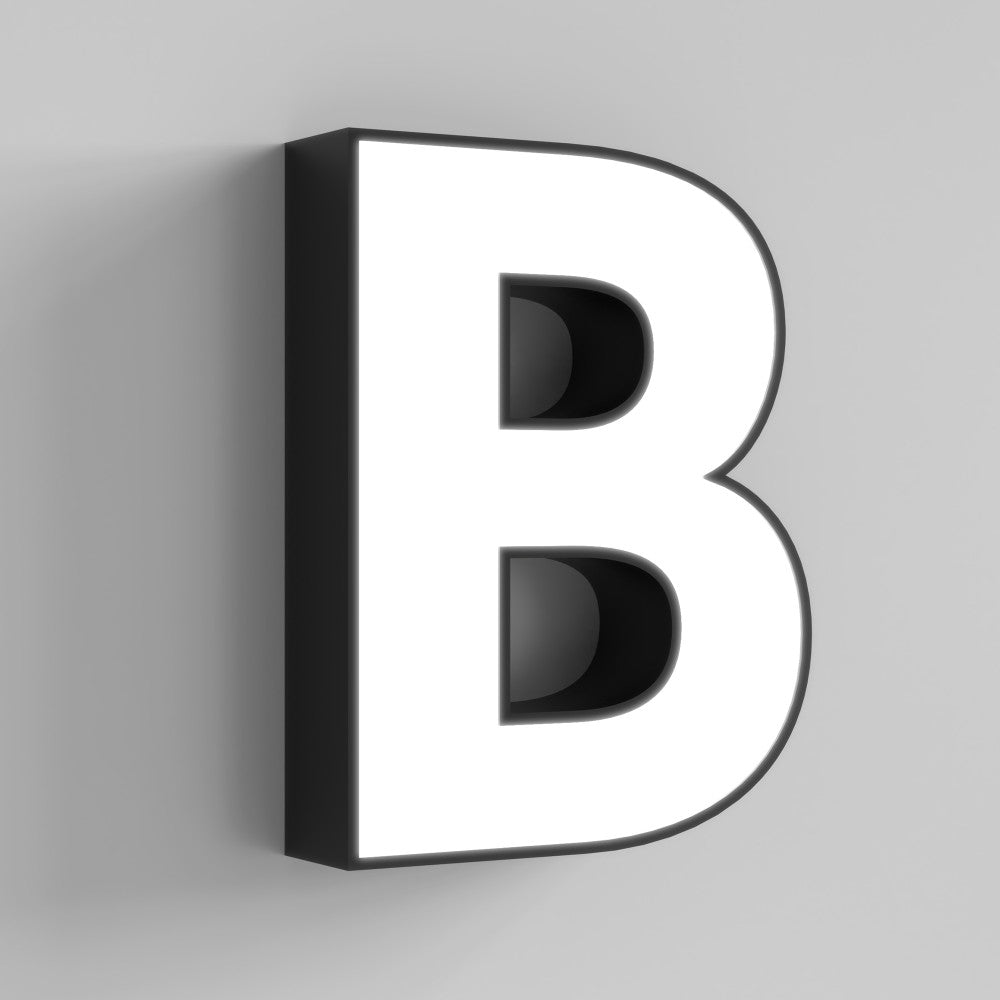

Inset Acrylic Face Lit
Configure your product, upload artwork when ready, and continue to secure Shopify checkout. A proof will be sent before production.
Product Details
- Ready-to-install (Except Raceway)
- UL Certified
- 5 Year Warranty
Description
Front
Back
This is a sophisticated alternative to our regular channel letter with an Stainless Steel brushed return and border in lieu of a trim cap. Built with a white acrylic face and customizable color on any Stainless Steel surface, it creates a vibrant appearance for your channel letter.
- Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
- Certified: UL Listed with Sign Section Labels for Outdoor Installation (Except Raceway)
- 5 Year Warranty
Components
Face
Faces are the front surface of Front Lit stainless steel letters
Specification
9mm Polycarbonate White Acrylic with Stainless Steel Border
Return
Returns are the sides bordering the Front Lit letter.
Specification
2" or 3" 0.8mm/1mm Stainless Steel Returns
Back
Backs are the back board of the Front Lit stainless steel letter.
Specification
0.8mm/1mm Stainless Steel
LED Lights
Specification
Mynice High Efficiency, 160° Beam, IP67, 10000K - 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)
Power Transformer
Specification
Installation Guide
Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year
Warranty)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
Installation Guide
Raceway
Specification
Size:
5.5" height and 3.5" depth
Customizable length from 10" to 46"
For wider applications, multiple segments are used to achieve the desired length
Accessories:Raceway base (each segment)
Raceway cover (each segment)
End caps x2 (each raceway)
Connect plates x2 (each segment)
Mounting brackets x4 (each segment)
Self-tapping screws x20 (each segment)
Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.
Because there are no wiring and mounting holes on the raceway, the channels will not be pre-installed on the raceway.
5.5" height and 3.5" depth
Customizable length from 10" to 46"
For wider applications, multiple segments are used to achieve the desired length
Accessories:
Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.
Because there are no wiring and mounting holes on the raceway, the channels will not be pre-installed on the raceway.
Raceway Installation Guide:
- List out parts
- Assemble Raceway
- Put Hanger on
